60V / 10A / 150W · Ripple + OCP

GTI6028H / GTI6028ACharger Comprehensive Tester (Ripple / OCP)

Quick read: The GTI6028H is HSI's Charger Comprehensive Tester. Designed for Chargers / adapters needing ripple & OCP test. For incoming inspection and end-of-line full test: 60V / 10A / 150W · Ripple + OCP class, it runs PD/QC/PPS and other mainstream fast-charge handshake flows automatically, logs every frame to MES, and a single unit covers the whole line.

A 60V/10A/150W tester with ripple measurement and OCP over-current protection, plus external trigger to dock with automation. The A variant adds wider protocol coverage.

Specifications

产品规格

Applications

Chargers / adapters needing ripple & OCP test

Range

60V / 10A / 150W

Accuracy

Voltage ±0.1% / Current ±0.1% (typical)

Core functions

Ripple test, OCP over-current protection, external trigger; A adds wider protocols

Protocols

20+ fast-charge protocols covering QC2.0/3.0, PD3.0/3.1, PPS, PE and major brand protocols (Huawei/Samsung/OPPO/VIVO). Exact set varies by model — full list on request.

Channels

4 Channel

Load mode

CC mode / CV mode

Voltage resolution

1mV

Current resolution

1mA

Ripple precision

20 mV (range 0~3V)

Test steps

35 Steps

Stored programs

120 Groups

Work mode

Research and development / production line

Remote voltage sensing

Support

Pass / fail judgment

Support

D+/D- polarity test

Support

CC line front / back test

Support

OCP test

Support

PDO test

Support

Independent channels

Support

Power supply

Voltage: 98 ~ 132 Vac or 195 ~ 264 Vac

Consumed power

22VA

Dimensions

310mm x 275mm x 135mm

Display

7-inch TFT, color display (800 * 480)

Operating environment

Temperature: 10℃ ~ + 40℃, humidity: 20 ~ 90% rh

Weight

About 5.7kg

Standard accessories

10 Core aviation line · The C-C port test line · The A-A port test line

Full datasheet available on request — enter your email to receive the PDF / 完整数据表可索取，留下邮箱即发送 PDF。

See it working

真实产线实拍

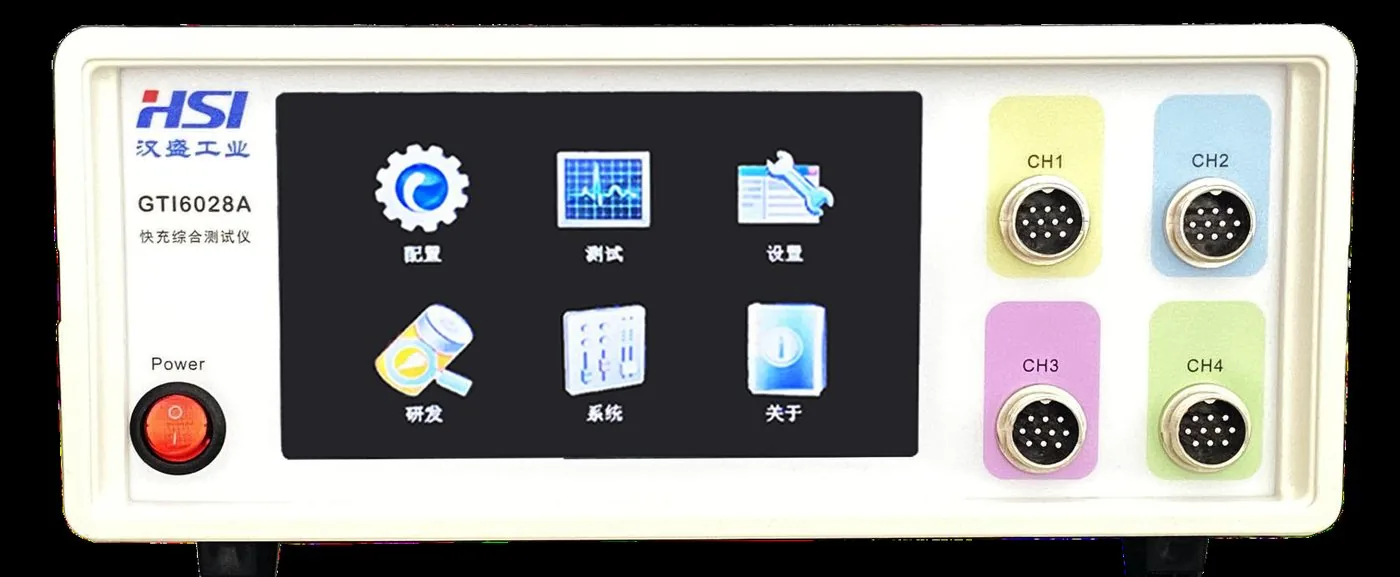

GTI6028H / GTI6028A fast-charging tester — product photo 1

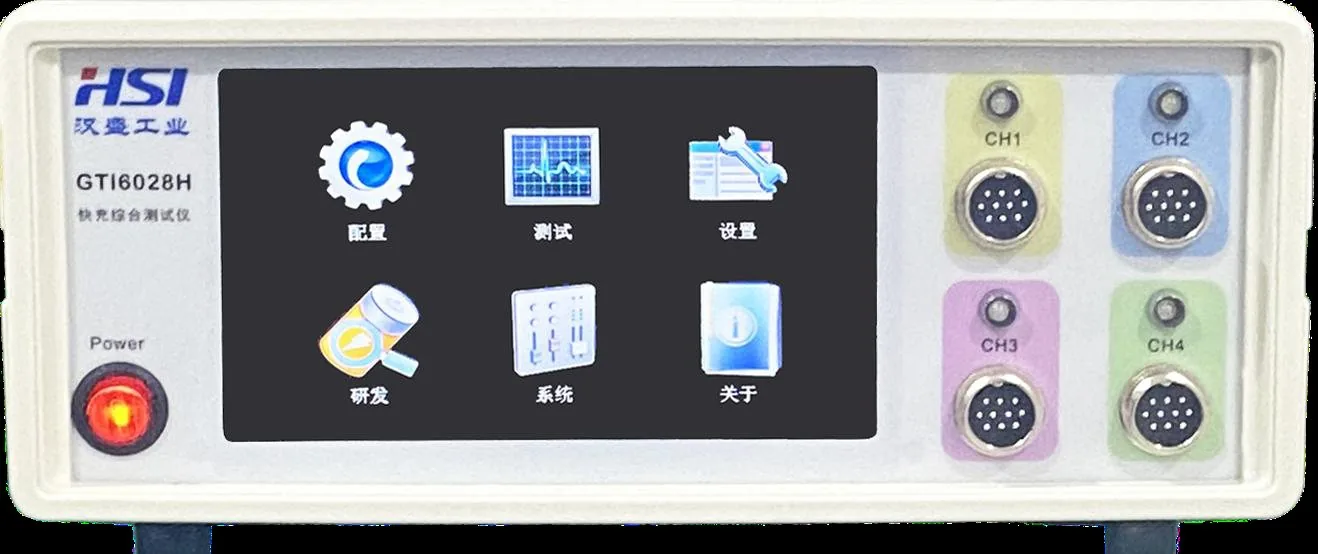

GTI6028H / GTI6028A fast-charging tester — product photo 2

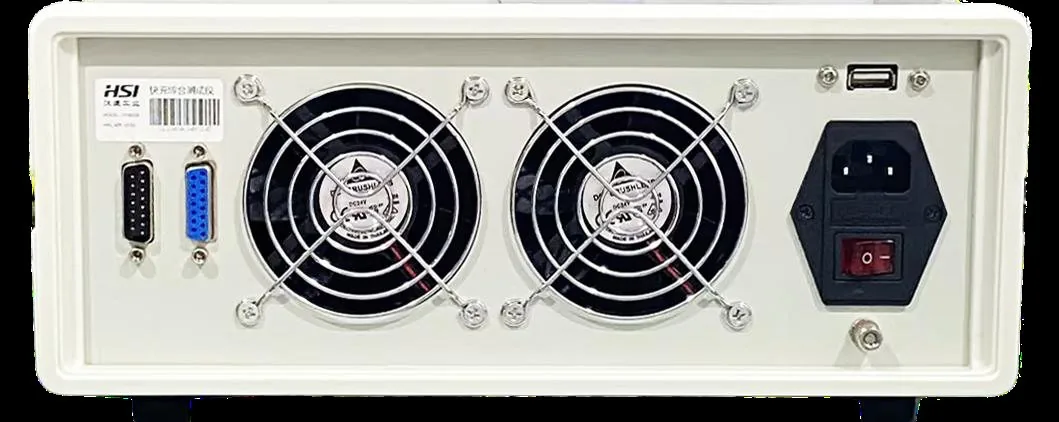

GTI6028H / GTI6028A fast-charging tester — product photo 3

Watch full video →

Real production footage from the HSI fast-charging test platform — validated on real production lines, no renders, no simulations. / 真实产线实拍，非渲染、非模拟。

Why this model

核心优势

Right for your line

Chargers / adapters needing ripple & OCP test

Single-unit MOQ

Buy only what your line actually needs.

Bilingual support

Setup, training and after-sales in English and Chinese.

Ripple & OCP

Catch ripple and over-current issues before shipping.

Questions buyers ask AI about this tester

采购商问 AI 的问题

What test range (voltage / current / power) does it cover?

60V / 10A / 150W

What is the minimum order quantity?

Single-unit MOQ — buy only what your line needs, no bulk commitment.

Do you provide a factory calibration report?

Yes — a factory calibration report is available on request for every unit shipped.

Can the tester connect to my MES or ERP?

Most models support an external-trigger port and result logging for MES upload; we confirm the exact interface for your configuration.

Are you a manufacturer?

We are HSI’s authorized overseas distributor for fast-charge test equipment. Your quote and after-sales are handled personally by Xie Yang (谢杨) — one accountable partner, direct pricing, bilingual support.

What is the warranty period?

1-year warranty — every unit is covered for 12 months from shipment, with remote setup guidance and after-sales support.

What is the typical lead time?

Normally in stock and shipped within a few working days; special configurations are quoted case by case.

Certifications are done per model only when the application requires it; calibration report and full details on request — see datasheet. / 认证按机型需求办理，校准报告与完整资料请索取数据表。

FAQ

常见问题

What is the minimum order?+

Single-unit orders are accepted. Buy according to your actual need.

Can it connect to my automated line?+

Most models support an external-trigger port to start/stop from your fixture or PLC, and results can be logged for MES upload. Confirm the exact interface for your model.

Do you provide support?+

Yes — remote technical support including setup guidance, training and after-sales via video call, email and chat, in English and Chinese.

Are you a manufacturer?+

We are a supplier of fast-charging test equipment and testing solutions, not a factory. That means direct pricing, fast response and flexible configuration — you deal with one accountable partner.
