8-Channel

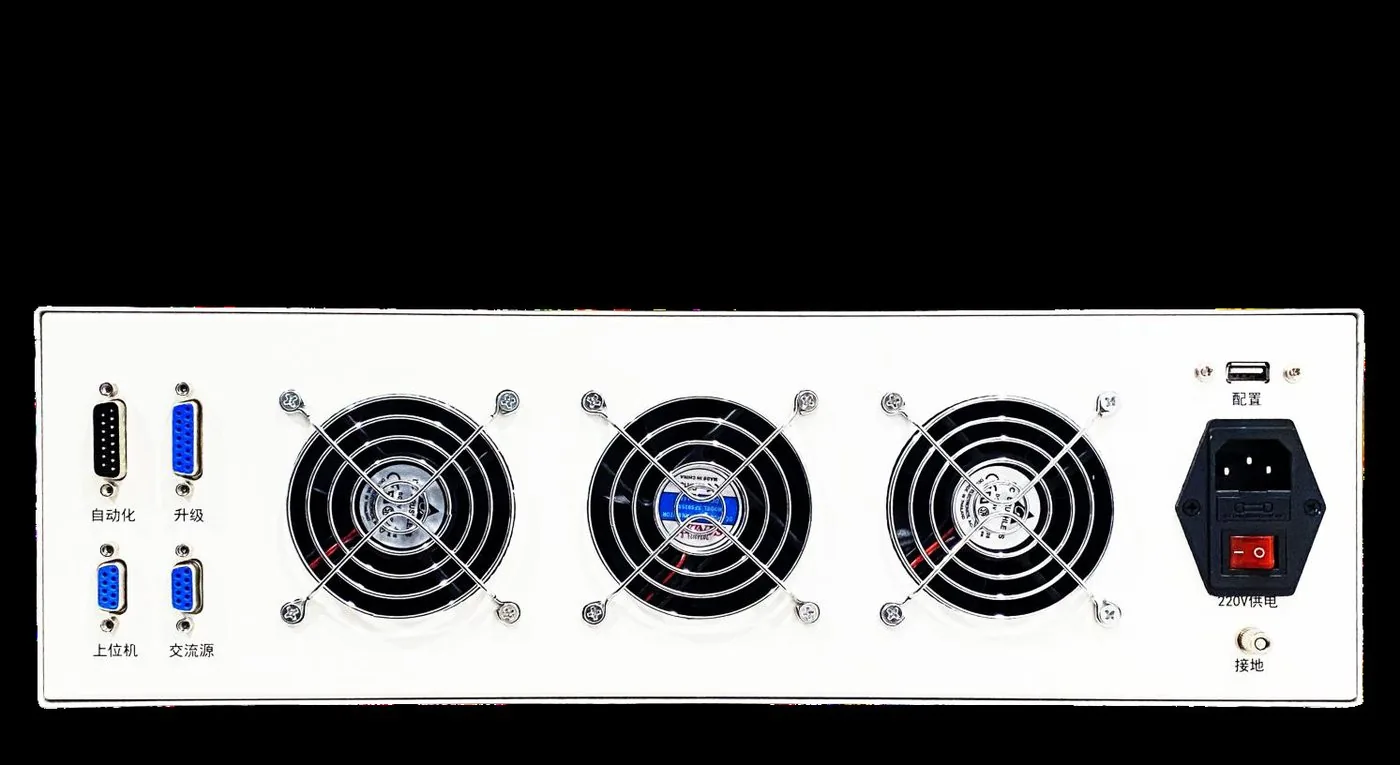

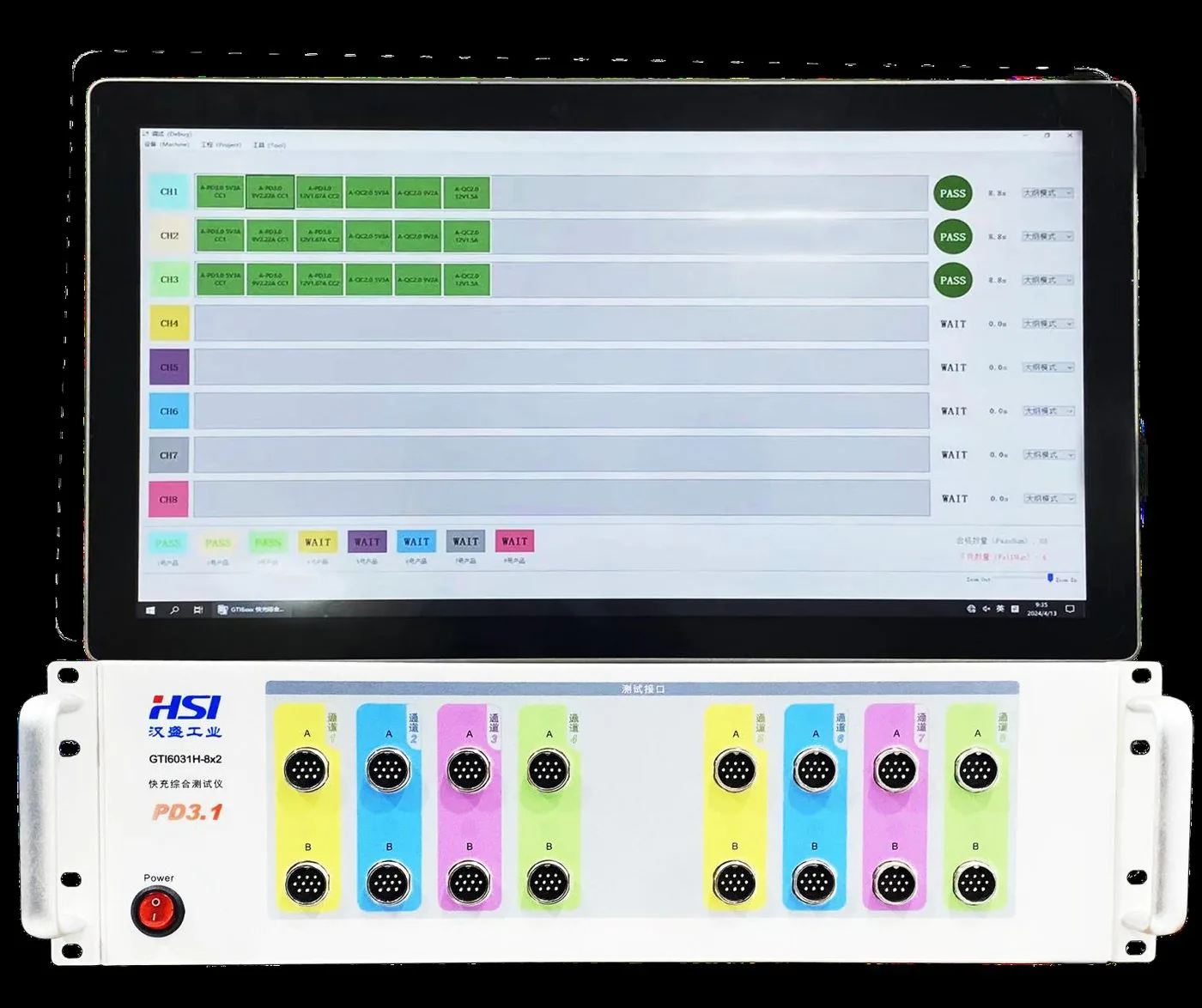

GTI6031H-8×2Charger & Power Bank Tester (8 Test Ports)

Quick read: The GTI6031H-8x2 is HSI's Charger & Power Bank Tester. Designed for Multi-port fast-charge heads, adapter production lines. For incoming inspection and end-of-line full test: 8-Channel class, it runs PD/QC/PPS and other mainstream fast-charge handshake flows automatically, logs every frame to MES, and a single unit covers the whole line.

The workhorse for multi-port chargers and power banks. Plug-and-test, no dedicated operator, 20+ protocols covered — replace manual QC with stable automated testing.

Specifications

产品规格
Applications
Multi-port fast-charge heads, adapter production lines
Range
8 test ports
Accuracy
Voltage ±0.1% / Current ±0.1% (typical)
Core functions
Plug-and-test; 20+ protocols; no dedicated operator needed
Cable test
Built-in E-Marker module — Type-C cable front/back tested inside the test sequence, no manual flipping and no dedicated test lead
Protocols
20+ fast-charge protocols covering QC2.0/3.0, PD3.0/3.1, PPS, PE and major brand protocols (Huawei/Samsung/OPPO/VIVO). Exact set varies by model — full list on request.
Channels
8x2 Channel
Load mode
CC mode / CV mode
Voltage resolution
1mV
Current resolution
1mA
Ripple precision
20 mV (range 0~3V)
Test steps
200 Steps
Stored programs
Infinite
Work mode
Research and development / production line
Remote voltage sensing
Support
Pass / fail judgment
Support
D+/D- polarity test
Support
CC line front / back test
Support
OCP test
Support
PDO / VDM test
Support
Multi-port test
Support for sequential test, synchronization test
Independent channels
Support
Built-in E-Marker
Support
Power supply
Voltage: 98 ~ 132 Vac or 195 ~ 264 Vac
Consumed power
25VA
Dimensions
400mmD x 440mmW x 155mmH
Display
18.5-inch full metal band touch function
Operating environment
Temperature: 10℃ ~ + 40℃, humidity: 20 ~ 90% rh
Weight
About 14.7 kg
Standard accessories
10 Core aviation line · The C-C port test line · The A-A port test line
Full datasheet available on request — enter your email to receive the PDF / 完整数据表可索取,留下邮箱即发送 PDF。

See it working

真实产线实拍

Real production footage from the HSI fast-charging test platform — validated on real production lines, no renders, no simulations. / 真实产线实拍,非渲染、非模拟。

Why this model

核心优势

Right for your line

Multi-port fast-charge heads, adapter production lines

Single-unit MOQ

Buy only what your line actually needs.

Bilingual support

Setup, training and after-sales in English and Chinese.

Cable test built in

Type-C cable front and back testing runs in the sequence — no manual flip step, no dedicated test lead per station.

8 ports, one bench

Validate eight chargers in parallel, every cycle.

Questions buyers ask AI about this tester

采购商问 AI 的问题

What test range (voltage / current / power) does it cover?

8 test ports

What is the minimum order quantity?

Single-unit MOQ — buy only what your line needs, no bulk commitment.

Do you provide a factory calibration report?

Yes — a factory calibration report is available on request for every unit shipped.

Can the tester connect to my MES or ERP?

Most models support an external-trigger port and result logging for MES upload; we confirm the exact interface for your configuration.

Are you a manufacturer?

We are HSI’s authorized overseas distributor for fast-charge test equipment. Your quote and after-sales are handled personally by Xie Yang (谢杨) — one accountable partner, direct pricing, bilingual support.

What is the warranty period?

1-year warranty — every unit is covered for 12 months from shipment, with remote setup guidance and after-sales support.

What is the typical lead time?

Normally in stock and shipped within a few working days; special configurations are quoted case by case.

Certifications are done per model only when the application requires it; calibration report and full details on request — see datasheet. / 认证按机型需求办理,校准报告与完整资料请索取数据表。

FAQ

常见问题
What is the minimum order?+
Single-unit orders are accepted. Buy according to your actual need.
Can it connect to my automated line?+
Most models support an external-trigger port to start/stop from your fixture or PLC, and results can be logged for MES upload. Confirm the exact interface for your model.
Do you provide support?+
Yes — remote technical support including setup guidance, training and after-sales via video call, email and chat, in English and Chinese.
Are you a manufacturer?+
We are a supplier of fast-charging test equipment and testing solutions, not a factory. That means direct pricing, fast response and flexible configuration — you deal with one accountable partner.

Want the datasheet or a quote?

Single-unit MOQ · bilingual support · remote setup guidance. Tell us your line scenario and we help you pick the configuration — usually within 24 hours.
